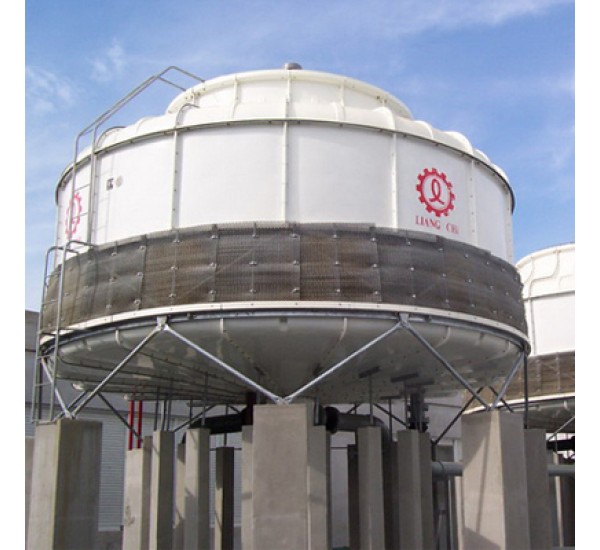

Cooling Tower

DESIGN   FEATURES :Cooling Tower Model LBC-T

The  all-Fiberglass  Reinforced  Polyester  Casing  Is  Circular  Shaped  Thus  Eliminating  Special Positioning  requirements  and  is  not  affected  by  prevailing  wind  directions.  It further permits  quick  and  easy  installation  due  to  light-weight  and  compactness.  Site  assembly  is simplified  by   the  modular  design  of  components.

GENERAL  DESCRIPTION :Cooling Tower Model LBC-T

1. Casing Liang  Chi  Model  LBC-T  of  Fiberglass  Reinforced  Polyester cooling  towers  have been  designed  for  durability.
2. Fan Drive Model   LBC-T  200  downwards  have  direct  driven  fans. Model   LBC-T  225  upwards  feature  a  unique  belt  drive  to  avoid  excessive  noise.
3. Fan  Blade Aero  -  dynamically  designed  propeller  fans  at  low  speed  are  used  to  save  on  power  consumption  and  to  assure  quiet  operation.
4. Model  LBC-T-3  to  30  feature  special  reinforced  plastic  fans.
5. Model  LBC-T-40  upwards  feature  aluminium  alloy  fans.
6. Water  Distribution A  highly  efficient  rotating  sprinkler  head  system  in  reinforced  plastic  is  used  for  the  smaller  range  of  towers  Model  LBC-T-3  to  60  From  Model  LBC-T-70  upwards,  the  aluminium  alloy  sprinkler  system  is  incorporated.  Both  sprinkler  systems  are  self-rotating  at  low  head  loss.
7. Eliminators Eliminators  are  of  special  F.R.P.  design  to  reduce  carryover  to  the  barest  minimum.  (for  LBC-T-30  &  upwards)
8. Filling The  filling  is made of  P.V.C. sheet  laid  in  a  ring  form  to  enable  easy  replacement,  having a  high  heat  transfer  efficiency.  It  is  suitable  for  operation  with  inlet  water  temperature  up  to  55  oC  or  130  oF
9. Inlet  Louver P.V.C.  plastic  mesh  to  prevent  objects  entering  the  water  basin.
10. Ladder Accessibility  for  maintenance  to  operating  fan  unit  etc.  (for  LBC-T-40 & upwards)
