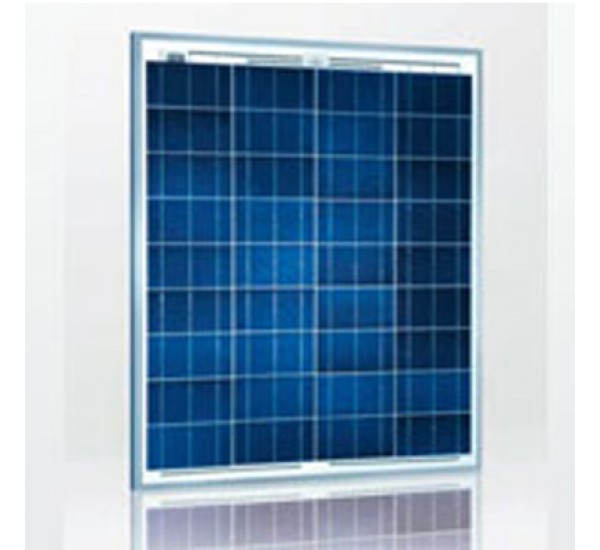

SolarWorld Sunmodule SW50 Poly R6A
With its Sunmodule@ SW50 Poly R6A SolarWorld presents a photovoltaic module ideally suitable for off-grid applications. Highest quality standards are applied in the entire manufacturing process. SolarWorld’s in-depth expertise ensures best performance and highest energy yields over the entire lifespan, even under challenging climatic conditions.
World class quality
SolarWorld produces the best products with the highest quality, manufactured according to German and US quality standards in fully‑automated ISO 9001and 14001 certified factories.
Outstanding products
SolarWorld's modules were assessed by the OKO‑TEST consumer magazine as"excellent".
An experienced industry leader
With over 30 years of experience in off‑grid solar applications – SolarWorld delivers top products and technical experience at the highest levels. SolarWorld modules are installed in over 100,000 Telecom/Industrial systems worldwide.
PERFORMANCE UNDER STANDARD TEST CONDITIONS (STC)*
Maximum power Pmax : 50 Wp
Open circuit voltage Uoc : 22.1 V
Maximum power point voltage Umpp : 18.2 V
Short circuit current Isc : 2.95 A
Maximum power point current Impp : 2.75 A
COMPONENT MATERIALS
Cells per module : 36
Cell type : Poly crystalline
Cell dimensions : 2.44 in x 6.14 in (62mm x 156mm)
Front : tempered glass (EN12150)
SYSTEM INTEGRATION PARAMETERS
Maximum System Voltage SC II : 1000VDC
Maximum reverse current 12 A
Number of bypass diodes 2
Dimension :
Length : 680mm
Width : 680mm
Height : 34mm
Frame : Aluminum
Weight : 5.6 Kg
