DynamIx HR

DynamIx HR Series 5

System configuration

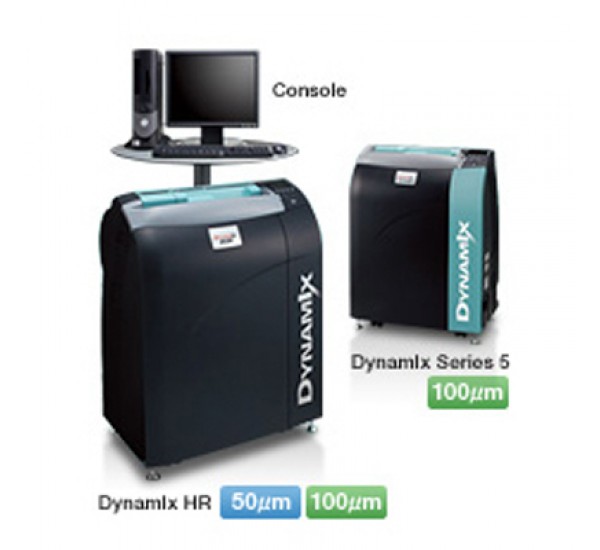

IP Reader Units  (reader/console)

Having combined a small footprint with high-performance, you can obtain high precision 50μm reading with simple operations.

• DynamIx HR  (50μm/100μm)
• DynamIx Series 5  (100μm)
• FCR - high resolution image reading technology with a proven track record.
• Optimal image consistency with EDR (Exposure Data Recognizer).
• High precision 50μm reading.
• HR unit only and requires 50μm IP (UR-1) with special cassette (UR)
• Cassette adaptor required for 24 x 30cm IPs
• High speed reading of 72 IPs an hour (25.2 x 30.3cm IP at 100m reading).
• Maximum reading capacity varies with exposure level
• Slim and space-saving design that fits almost anywhere.
• No need for a darkroom with our imaging plates and cassettes.

Review images on a high resolution monitor and store your image data registered with the image database on high-capacity removable media.

• DynaView Workstation V5.0
• Easy processing of images. Magnify and measure as required.
• Measurement results can also be stored.
• Easy on the eyes without that flickering - the LCD screen gives clear images with high intensity and high contrast.
• Images registered with the image database are stored on removable media and can be quickly retrieved and displayed.
• Convert images into JPEG, BMP format for a variety of uses.
• Forget about layout space - the LCD monitor is flat and light.

Specifications

DynamIx HR/ : Reader specifications
