Safe control of motor brakes and safety brakes

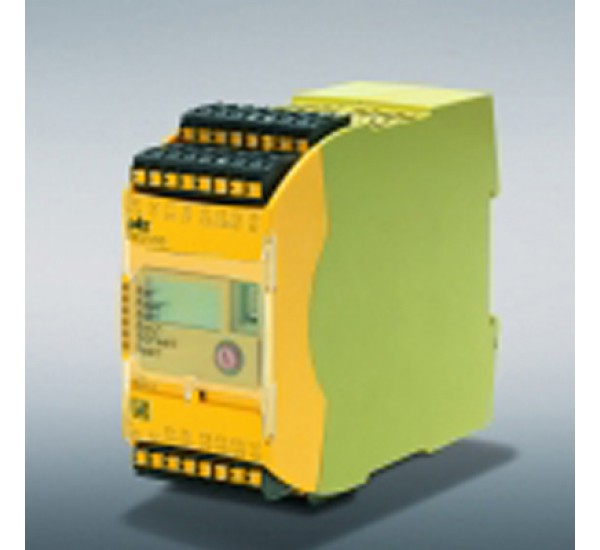

Both motor brakes and safety brakes can be safely controlled with the safety relay PNOZ s50. The stand-alone device PNOZ s50 controls and monitors two safety brakes up to the highest category PL e of EN ISO 13849-1 / SIL CL 3 of EN/IEC 62061 or one brake up to PL d of EN ISO 13849-1 / SIL CL 3 of EN/IEC 62061. The safety relay has two dual-pole, safe electronic digital outputs for 24 VDC with 4,5 A each. On the safety relay PNOZ s50, temporary overexcitation is followed by voltage reduction, for which parameters can be set.

Electrical data Brake control devices - PNOZ s50

• Supply voltage (1-pin/2-pin): 24 V DC/24 V DC, 48V DC
• Voltage tolerance (1-pin/2-pin): -15 % ... +20 %/-10% ... +10%
• Ambient temperature 0 ... 55 Grad
• Number of semiconductor inputs (1-pole):

           -Failsafe/standard 4/4

• Number of semiconductor outputs (1-pole):

           -Failsafe 3
           -Output current 0.1 A
           -Test pulse outputs 2

• Rated voltage of power outputs: 6 - 24 VDC
• Output current of semiconductor outputs (2-pin):

           -24 V DC supply voltage

• Continuous duty (1 output/2 outputs) 1 x 6.5 A/2 x 4.5 A
• Overexcitation (1 output/2 outputs) 1 x 6.5 A/ Σ = 10

           -48 V DC supply voltage

• Continuous duty (1 output/2 outputs) 1 x 3.25 A/2 x 2.25 A
• Overexcitation (1 output/2 outputs) 1 x 3.25 A/2 x 3.25 A
