TRUMPF : TruBend

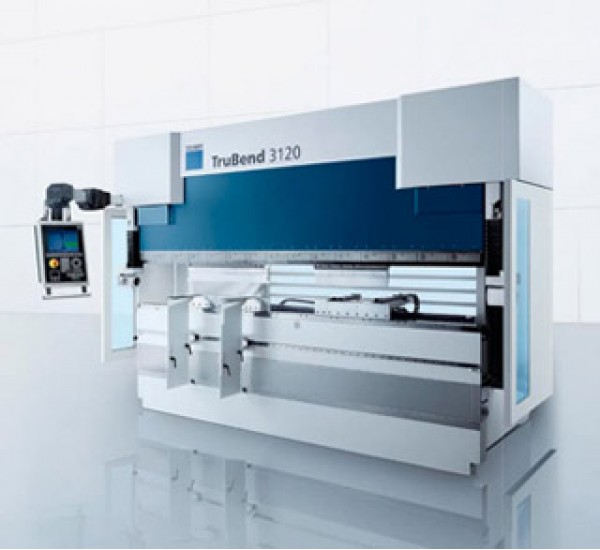

TRUMPF : TruBend 3120
The TruBend Machine allows you to process almost
any complex part geometry, it offers precise results
and very best working speed. With the 5 axes backguage
ensures that the parts are always positioned accurately.
And the TruTops software will simulate all step of the
process and report the problems before it happen. Specification
- Bending force : 1,200 kN ( 120 tons force )
- Bending Length : 3,110 mm
- Maximum material thickness 5 mm
for steel and stainless steel
- Throat : 420 mm
- Rapid Speed : 200 mm/s - Fully automatic with TruTops UnFold & Bend
- Quick setup tools by pneumatic clamp
- Auto back gauge 5 axes
- Minimum angle 30 degree ( < 3.0 mm )
Call Seller for Quote
Model:
3120
