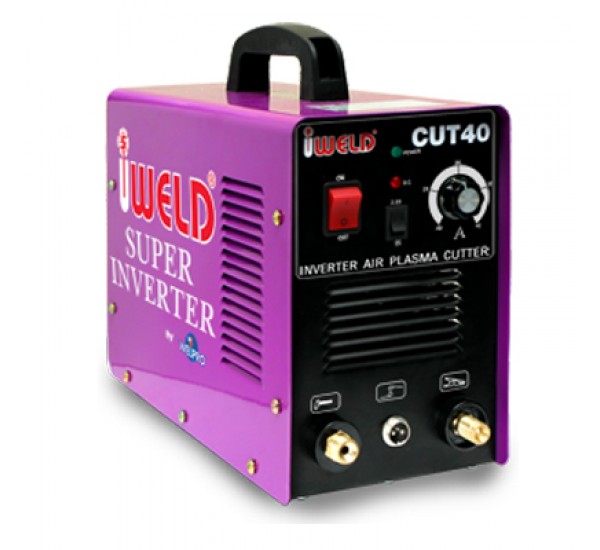

IWELD CUT 40 Inverter Welding Machine
Plasma Cutting Machine



IWELD CUT 40​ Inverter Welding Machine​ Technical Data

Rated Input voltage (V) Frequency(Hz) 1ph220V±10% 50/60Hz
Rated input power capacity(KVA) 5
Rated input current (A) 22.7
No load voltage (V) 230
Output current range (A) 20-40
Rated output voltage(V) 100
Duty cycle(%) 60%40A-100%/31A
Efficiency (%) 85%
Power factor  0.93
Insulation class B
Protection class of Case IP21
Max.Cuting Thickness .Steel (mm) 12
Air  pressure(bar) 4--5
Air  flow L/min 100
Arc  start HF
Weight(Kg) 13
Dimensions (L x W x H))mm 410x165x295
Product code AJIWCUT04001
